دستگاه پلاتر 5رنگ کانن مدل Canon iPF770

محصول جدید

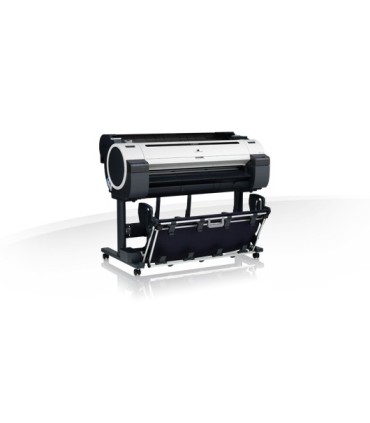

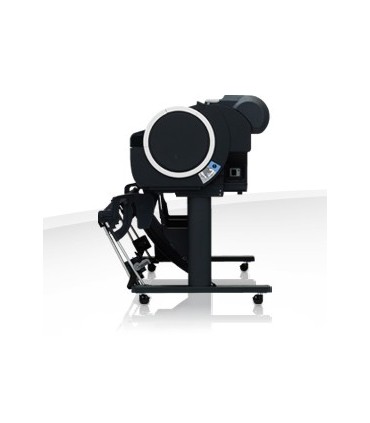

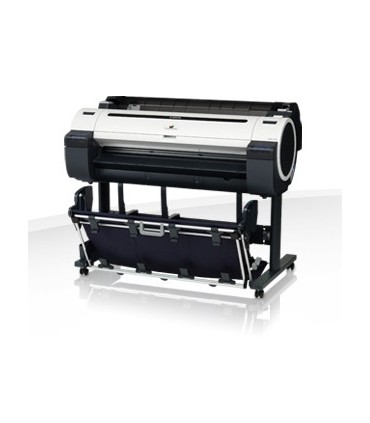

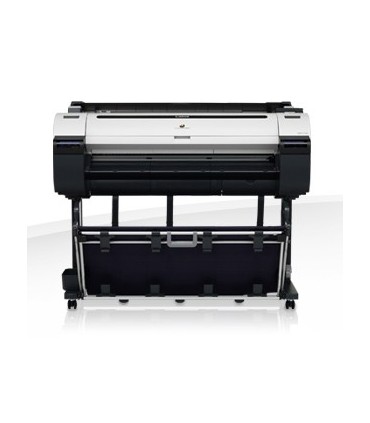

دستگاه پلاتر جوهر افشان پنج رنگ Canon imagePROGRAF iPF770 | عرض دهانه : 36 اینچ (91.4 سانتی متر) | با رزولوشن 2400*1200 dpi | مجهز به هد PF-04 | با قابلیت چاپ بدون حاشیه.

   فقط خرید  تلفنی   -    370  44  888 - 021

عدم موجودی

64.6 کیلوگرم
1304 (W) x 887 (D) x 1062 (H) mm
1 عدد
5 رنگ - 6کارتریج
2400*1200 dpi
Dye: Cyan, Magenta, Yellow, Black Pigment: 2 x Matte Black
سایز A0 در 48 ثانیه
انواع کاغذ شیت و رول جوهرافشان
برای کاغذ رول: 254 میلیمتر برای کاغذ شیت: 203.2 میلیمتر
برای کاغذ رول: 914.4 میلیمتر برای کاغذ شیت: 914.4 میلیمتر
256MB
AC 100 - 240 V (50-60 Hz)
36اینچ _91.4 سانتیمتر)
Canon

پلاتر کانن IPF 770 دستگاهی با توان چاپ انواع مدیای ایندور است که قابلیت چاپ تا عرض 91.4 سانتیمتر را دارا می باشد. این دستگاه با استفاده از تکنولوژی های مدرن کانن و بهرمندی از هد PF-04 کیفیتی خروجی با رزولوشن 2400*1200 dpi را ارایه می کند.

مشخصات کامل دستگاه را می توانید در ذیل مشاهده نمائید:

TECHNOLOGY

Printer Type

5 Colour - 36"/914.4mm

Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Number of Nozzles

Total: 15,360 MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each colour

Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 x 2 includes Non-firing nozzle detection and compensation system

Guaranteed Minimum Line Width

0.02 mm

Line Accuracy

±0.1 % or less

Ink Droplet Size

4 Picoliter per colour

Ink Capacity

Bundled starter ink: 90 ml
Sales ink: 130 ml

Ink Type

Dye/Pigment Reactive Ink
Dye: Cyan, Magenta, Yellow, Black
Pigment: 2 x Matte Black

OS Compatability

Windows 32 bit – XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008
Windows 64 bit – Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2
Mac: OSX – 10.6.8 - 10.10.x

Printer Languages

GARO (Graphic Arts language with Raster Operations), HP-GL/2, HP RTL

Standard Interfaces

USB 2.0 High-Speed
Ethernet 10/100/1000 Base-T/TX

PRINTING PAGE SIZE/PRINT SPEED

A0 Size, Plain Paper

0:48 min (Fast Economy Mode)
0:48 min (Fast Mode)
1:15 min (Standard Mode)

A0 Size, Coated Paper

1:15 min (Fast Mode)
2:24 min (Standard Mode)
3:50 min (High Quality Mode)

MEMORY

Buffer RAM

256Mb

Hard Drive

N/A

PAPER HANDLING

Media Width

Roll paper: 254 - 914.4mm
Cut sheet: 203.2 - 914.4mm

Media Thickness

Roll Unit: 0.07 - 0.8mm
Top Loading Manual Feed: 0.07 - 0.8mm
Front Loading Manual Feed: 0.5 - 1.5mm

Minimum Printable Length

Roll: 203.2mm
Cut Sheet: 279.4mm

Maximum Printable Length

18m (varies according to the OS and application)

Maximum Media Roll Diameter

150.0 mm

Paper Feed Method

Roll Feed: One Roll, top loading, front output
Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output

Media Feed Capacity

N/A

Borderless Printing Width (Roll Only)

10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm), 14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm), B1 (728 mm), A0 (841 mm), 36" (914 mm)

DIMENSIONS AND WEIGHT

Physical Dimensions and Weight

Main unit with a printer stand and basket open: 1304 (W) x 887 (D) x 1062 (H) mm
Main Unit with basket in extended position for flatbed stacking: 1304 (W) x 1100 (D) x 1062 (H) mm
Main Unit with Stand Weight: 64.6kg (ST-34, roll holder included, no inks, no print heads)

Software Included

Canon Printer Driver, Status Monitor/Print Monitor, Printer Driver ExtraKit – Free Layout and iR enlargement Copy, Printer Driver Optimization Module for AutoCAD, Media Configuration Tool, PosterArtist Lite (PC only), Print Plug-in for Microsoft® Office (PC only), Direct Print & Share, Custom Installer Creation Tool

POWER AND OPERATING REQUIREMENTS

Power Supply

AC 100 - 240 V (50-60 Hz)

Power Consumption

Operation: 140W or less
Power off Standby: 0.5 W or less
Sleep mode Power Consumption: 5W or less
Time to enter sleep mode: Approx. 5 Minutes

Operating Environment

15 - 30°C, 10 - 80 % (Condensation free)

Noise Level (Approx.)

Operation: approx. 46 dB
Standby: 35 dB or less
Accoustic Power: 6.4 Bels
Based on ISO 7779

Regulations

Europe: CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024), Germany: TUV, Russia: Gost-R (locally obtained), Tentative EAC

Enviroment Certificates

ENERGY STAR (WW), RoHS (EU), WEEE (EU), ErP Directive (Lot6, 26), China RoHS, Chemical Substances Regulation, Battery certification (EU, Japan, USA, China, Taiwan), Packing material Regulation(EU, USA, Korea)

WHAT'S INCLUDED

What's in the Box?

1 x print head, 1 x set of starter ink tanks - (C, M, Y, BK, 2 x MBK) 90ml each, 3 inch core adapters, Set up guide, Basic guide, Manual CD-ROM, User software CD-ROM (Mac & Win), Carrying caution leaflet, A2 calibration sheet, Safety/Standard Environment leaflet, Media sample - sheets, PosterArtist Lite leaflet, PosterArtist Lite software CD-ROM, EU/UK Power Cord

OPTIONS

Optional Items

Roll Holder Set: RH2-33

CONSUMABLES

User Replaceable Items

Print Head: PF-04
Ink Tank: PFI-107 C, M, Y, BK, 2 x MBK
Maintenance Cartridge: MC-10
